Maxillofacial fractures, particularly those involving the mandible and midface, require precise and reliable fixation systems to ensure proper anatomical reduction, functional recovery, and aesthetic outcomes. Among the many available options, the locking maxillofacial mini arc plate has emerged as a critical tool in the surgeon’s arsenal for addressing complex craniofacial trauma.
Overview of Maxillofacial Mini Arc Plates

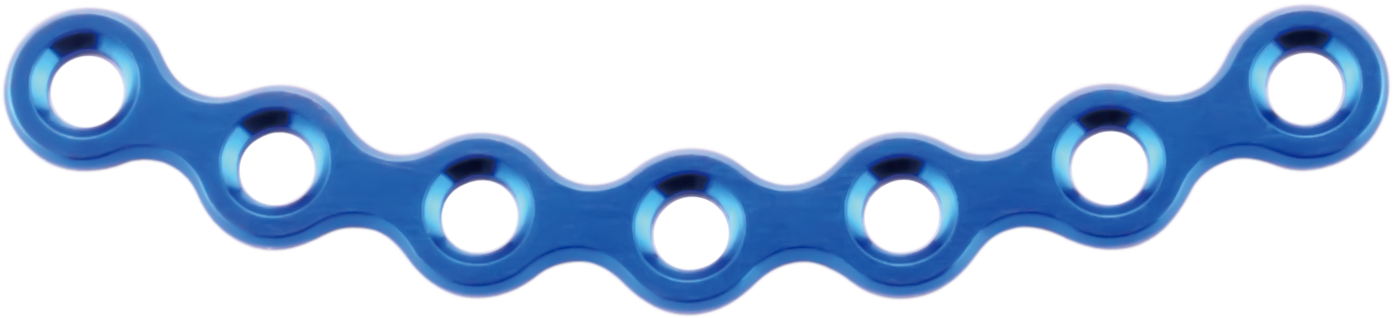

The locking maxillofacial mini-arc plate is a specialized, low-profile fixation device designed to conform to the curved anatomical structures of the facial skeleton. Its arc-shaped design allows it to provide rigid stabilization in regions where conventional straight plates may not offer sufficient contact or support. These plates are typically used in the management of:
Mandibular fractures (especially parasymphysis, body, and angle regions)
Zygomatic-maxillary complex fractures
Orbital rim and floor reconstructions
Midfacial trauma involving Le Fort fractures
The locking mechanism enables stable fixation by allowing screws to lock into the plate, eliminating micro-motion and reducing the risk of screw loosening—particularly important in thin, fragile facial bones.
Advantages of Locking Maxillofacial Mini Arc Plates
Compared to conventional non-locking systems, locking mini arc plates provide several clinical and technical benefits:
a) Enhanced Stability in Thin Bone
Facial bones, especially in the midface, often present limited bone stock for reliable screw engagement. Locking systems enable the screw head to lock into the plate, rather than relying solely on bone purchase, thereby creating a fixed-angle construct that enhances stability even in compromised bone conditions.
b) Better Anatomical Conformity
The arc configuration of the plate adapts naturally to the curved contours of the facial skeleton, especially in regions such as the infraorbital rim, maxillary buttress, and mandibular border. This reduces intraoperative bending time and improves surgical efficiency.
c) Minimized Soft Tissue Irritation
The mini-profile design of the locking maxillofacial mini arc plate helps reduce hardware palpability and soft tissue irritation postoperatively—an essential consideration in facial aesthetics.
d) Reduced Risk of Screw Back-out
Since the screws are locked into the plate, they are less likely to back out over time, a critical advantage in areas with high muscle movement such as the mandible.
Clinical Applications of Maxillofacial Mini Arc Plates
Mandibular Fractures
In mandibular trauma cases, mini arc plates are often used in combination with locking screws to stabilize fractures at the para symphysis or angle, where the curvature of the bone makes straight plates suboptimal. The locking design ensures that functional loads, such as mastication, do not compromise fixation stability during healing.
Midfacial Fractures
The locking maxillofacial mini arc plate is also highly effective in midface reconstruction, especially in the zygomaticomaxillary complex. The plate’s adaptability and locking capability allow surgeons to secure fragments with minimal bone contact while maintaining three-dimensional stability.
Orbital Rim and Floor Reconstruction
Arc plates are ideal for supporting orbital floor implants or reinforcing the infraorbital rim in blowout fractures. Locking screws provide additional resistance against displacement from intraorbital pressure.
Considerations for Surgeons and Buyers
When selecting a locking maxillofacial mini arc plate, B2B buyers such as hospitals, surgical centers, and distributors should consider the following:
Material Quality: Ensure the plates are made from medical-grade titanium (e.g., Ti-6Al-4V) for optimal strength, biocompatibility, and corrosion resistance.
Screw Compatibility: Plates should be compatible with standard 1.5mm or 2.0mm locking screws, depending on the application.
Design Versatility: Look for plates available in various arc radii and hole configurations to suit different anatomical locations.
Sterilization and Packaging: Products should be EO-sterilized or offer customization based on end-market requirements.
Conclusion
The locking maxillofacial mini arc plate is an indispensable solution in the treatment of mandibular and midfacial fractures, offering enhanced fixation stability, better adaptation to curved bone surfaces, and reduced complications. For surgical teams prioritizing both function and aesthetics, this plate system supports predictable outcomes across a wide range of facial trauma cases.
About Shuangyang Medical：
At Jiangsu Shuangyang Medical Instrument Co., Ltd., we specialize in the manufacturing of high-quality orthopedic and cranio-maxillofacial implants, including locking maxillofacial mini arc plates. Our production facility is ISO 13485 and CE certified, ensuring strict quality control from raw material selection to final packaging.
What sets us apart is our ability to offer flexible OEM/ODM services with fast lead times. For example, one of our European clients needed a customized arc plate with a specific curvature and hole spacing to match a local anatomical database. Within two weeks, we completed CAD design, prototyping, and provided trial samples — significantly faster than their previous suppliers. This kind of responsiveness and technical support has helped us build long-term partnerships in over 30 countries.
Whether you are a distributor, importer, or medical procurement team, we offer reliable supply, stable quality, and professional service to support your business and clinical needs.
